INSTALLATION
If you can't install the aerator, or if does not makes air bubbles,
PLEASE CONTACT US FOR QUICK ASSISTANCE
You can find us also on Facebook Group
AERATOR INSTALLATION
CONTROLLING AERATION
OVERVIEW
pH Control
UNPACKING
THE AIR PIPES
THE NOISE REDUCERS BLUE CAPS
THE MALE RETURNS ADAPTER
CHANGING THE JET DIRECTION
ENHANCED BUBBLES CURTAIN
AIR POOL COURTAIN
with an Aux Pump
UNPAKING & INSTALATION TUTORIAL
INSTALATION TUTORIAL
INSTALLATION
-
Unscrew the old nozzle locking nut
-
Remove the multi-flow ball
-

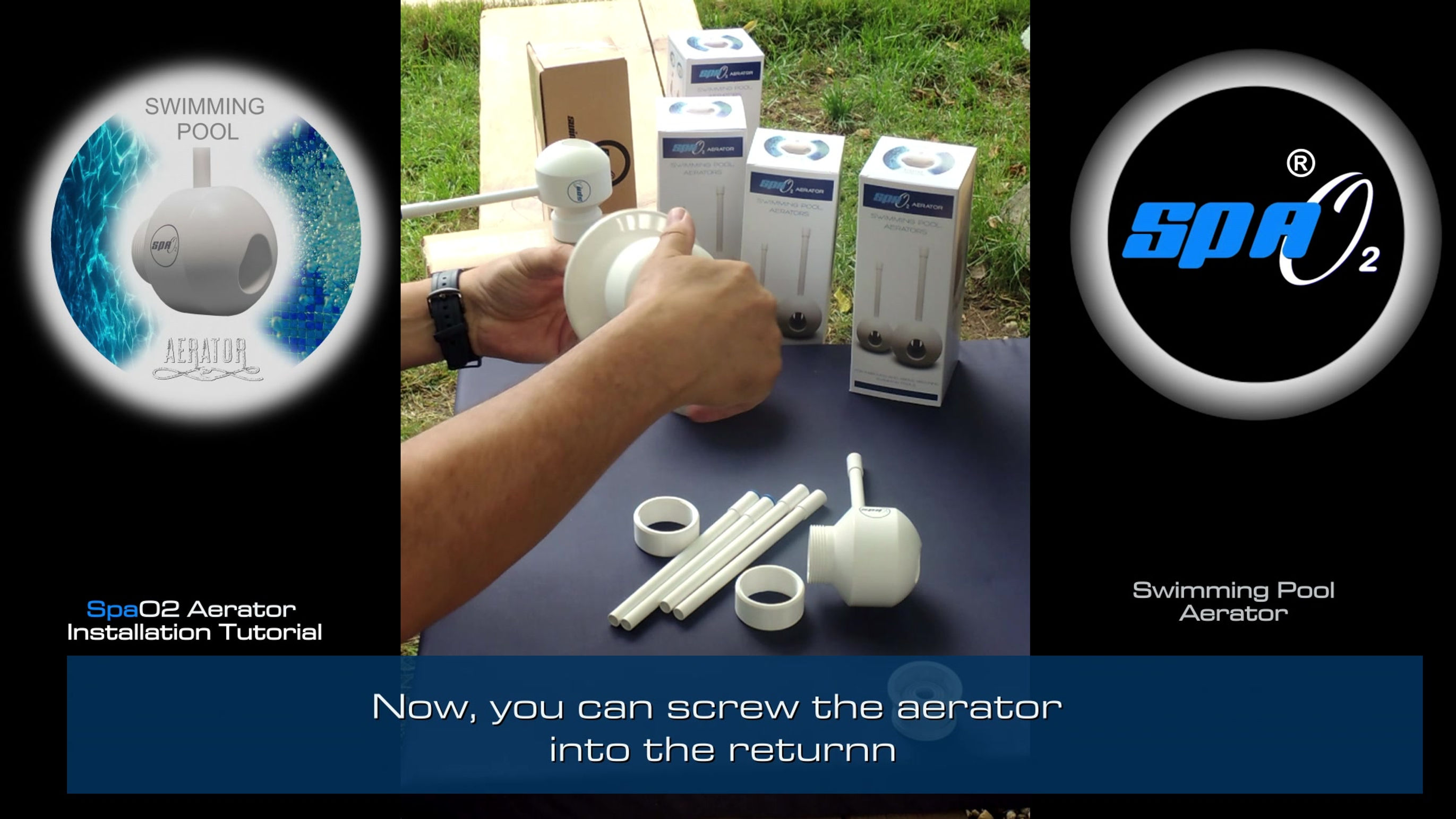

Screw the SPAO2 aerator in place in place hand tight. A tight connection is not required
-
Insert the air pipe into the extension pipe already installed in the aerator. The air pipe exterior head must be out of the water. If needed, install the extensions, then the air pipe.
-
The air pipe must be fully inserted until it reaches the bottom of the aerator
6. Start the pool circulation pump.
HOW TO USE THE AIR PIPES EXTENSIONS
HOW TO USE THE FEMALE ADAPTER
To connect to a male pool nozzle, screw in the included adapter as shown:
IMPORTANT NOTICE
O - For the aerators to operate, it is necessary either to install one aerator in each nozzle of the pool, or to reduce/close the nozzle without an aerator. Otherwise, the water pressure will flow through the free nozzle and the low pressure from the aerator will not be able to attract the air from the surface.
O - To stop aeration, it is not necessary to disassemble the aerator, but only to pull up the air pipe until the bubbles disappear. If you have completely removed the air pipe, please do so carefully when reinserting it through the holes.
O - Do not remove the air pipe end cap, its role is to attenuate the aeration noise
